IN WOOD Door Line Specifications
Technical parameters of the models: height, width, leaf thickness and finish

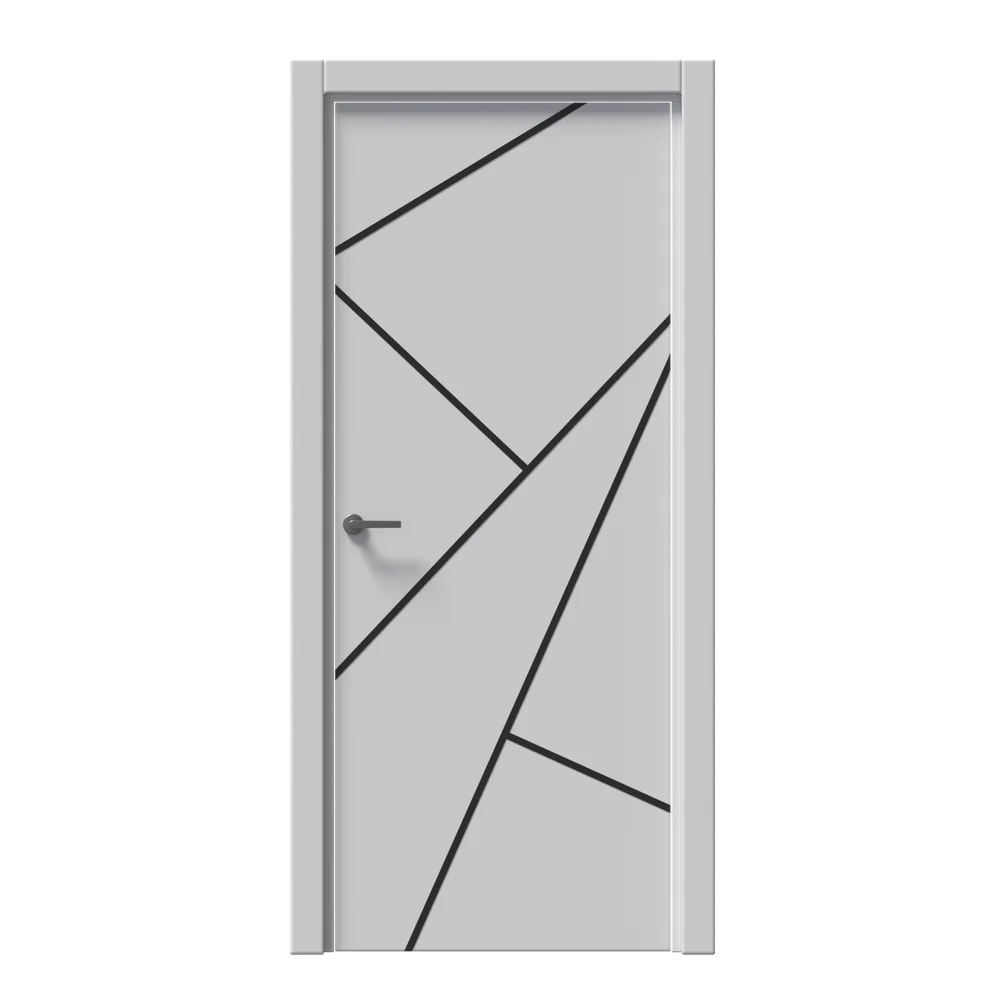

ETALON
- — Leaf height — standard 1800–2100 mm (maximum 2300 mm, 50 mm steps)
- — Width — 600, 650, 700, 750, 800, 850, 900 mm (50 mm steps)
- — Leaf thickness — 40 mm
- — MDF — 6 mm
- — Timber frame — 80/27 mm
- — Finish — PVC film

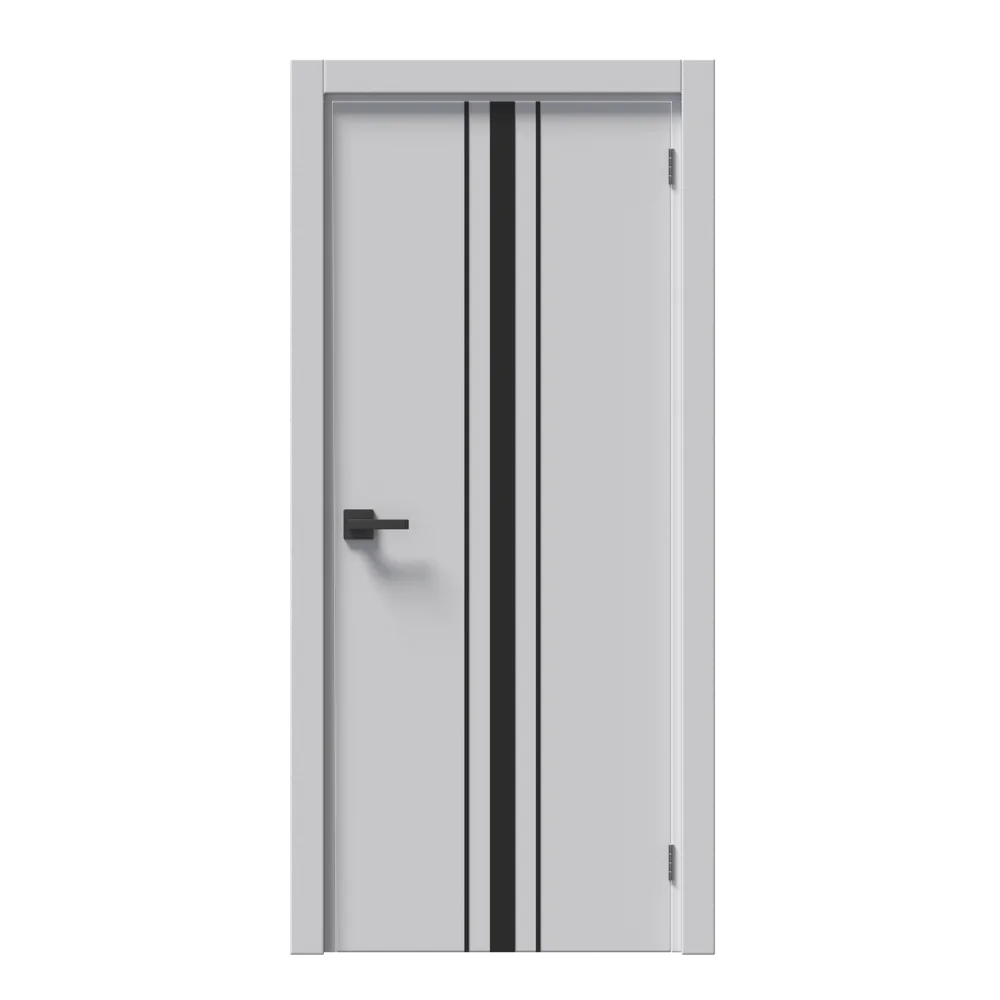

NOMINAL
- — Leaf height — standard 1800–2100 mm (maximum 2300 mm, 50 mm steps)
- — Width — 600, 650, 700, 750, 800, 850, 900 mm (50 mm steps)
- — Leaf thickness — 34 mm
- — MDF — 6 mm
- — Timber frame — 80/27 mm
- — Finish — PVC film

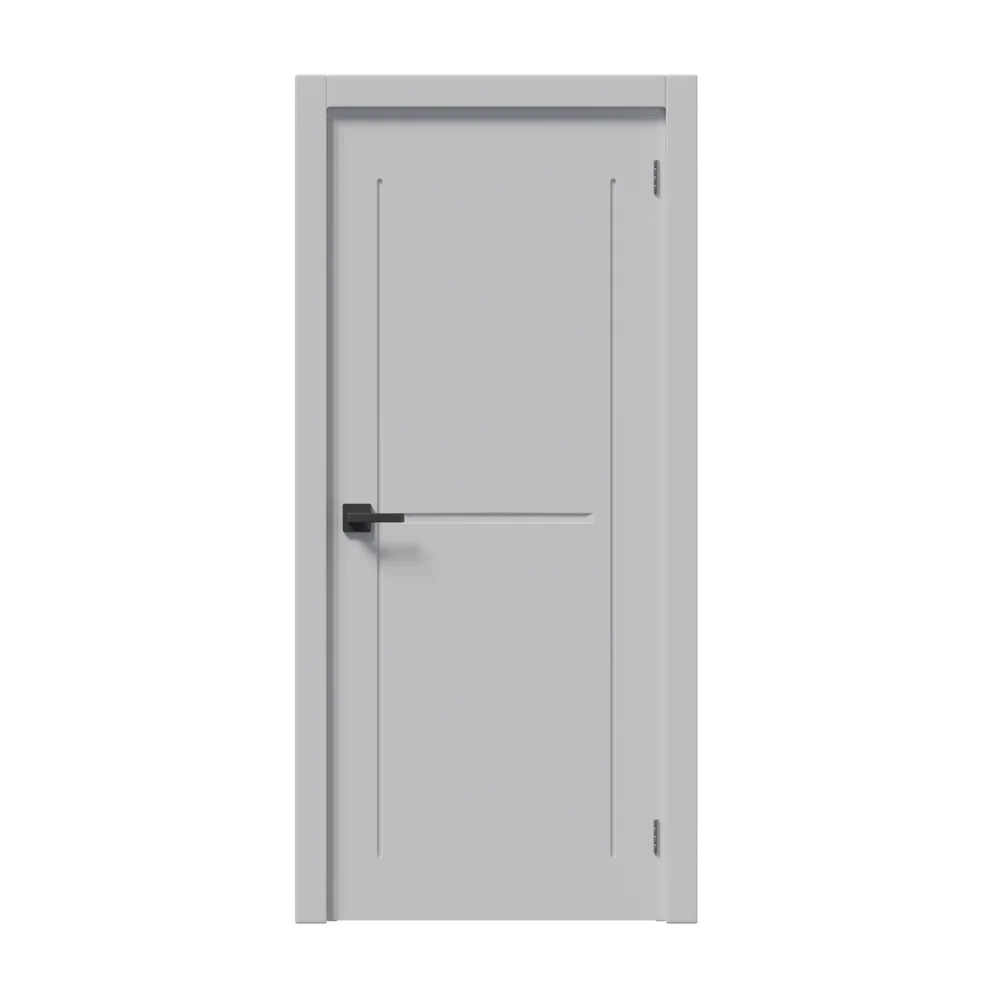

FREZZATTI
- — Leaf height — standard 1800–2100 mm (maximum 2300 mm, 50 mm steps)
- — Width — 600, 650, 700, 750, 800, 850, 900 mm (50 mm steps)
- — Leaf thickness — 34 mm
- — MDF — 4 mm
- — Timber frame — 80/27 mm
- — Finish — PVC film or RAL/NCS colour matching

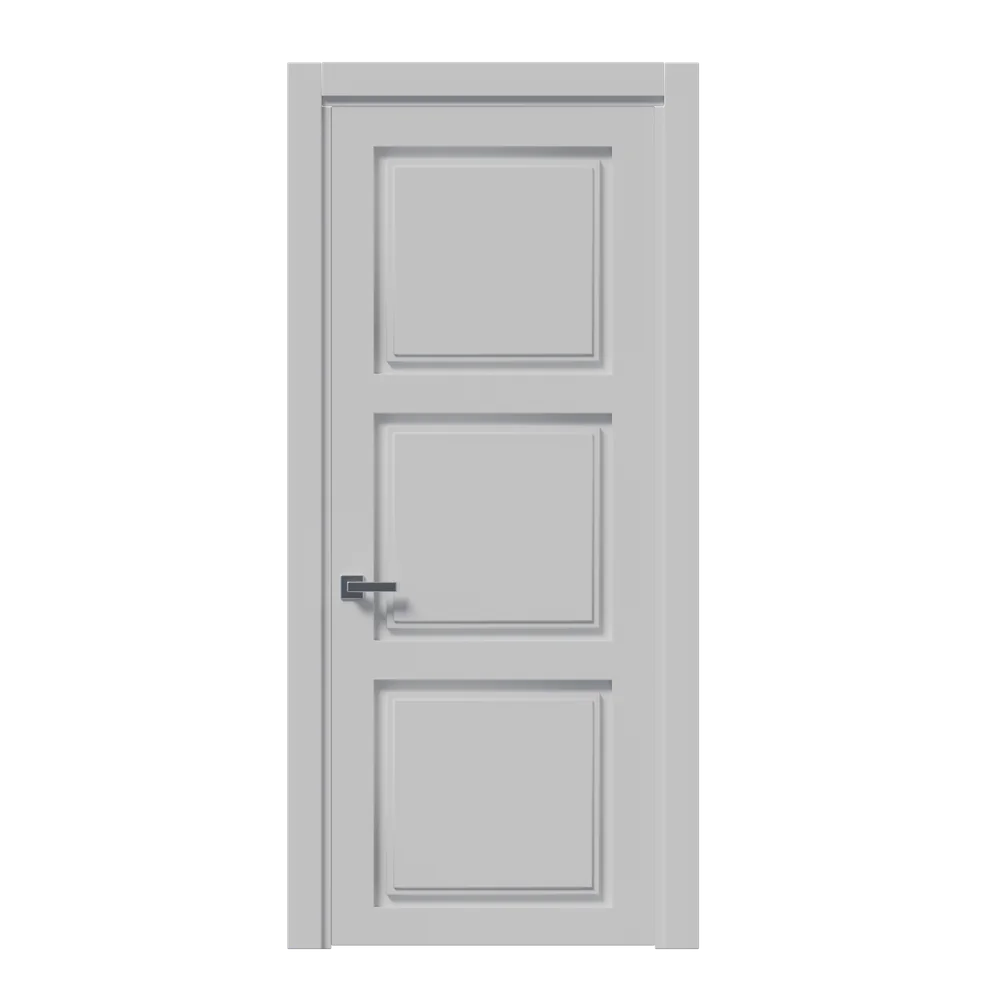

PERFETTO
- — Leaf height — standard 1800–2100 mm (maximum 2300 mm, 50 mm steps)
- — Width — 600, 650, 700, 750, 800, 850, 900 mm (50 mm steps)
- — Leaf thickness — 40 mm
- — MDF — 6 mm
- — Timber frame — 80/27 mm
- — Finish — RAL/NCS colour matching
Panel construction
ETALON / NOMINAL panel doors — what the panel is made of
Wooden frame
80 × 27 mm
Honeycomb core
18 mm cell
MDF
6 mm
Aluminium molding
PVC film
Additional panel features
- ✔Chamber-dried timber, 8–10% moisture content
- ✔Optional sound-insulation fill, up to 45 dB reduction
- ✔ABS or aluminium edge banding — impact resistance, moisture resistance, protected corners
- ✔PVC film is easy to clean and maintain
Dimensions
- — Height: standard 1800–2100 mm (max 2300 mm, 50 mm increments)
- — Width: 600, 650, 700, 750, 800, 850, 900 mm (50 mm increments)
- — Thickness: ETALON — 40 mm; NOMINAL — 34 mm
Need advice on a model?
Can't find the parameters you need, or want to clarify custom sizes for a wholesale order? Leave your contacts — our manager will help you choose the right line for your project.
